Round Nylon Pillar

MATERIAL:NYLON 66+BRASS
FLAME CLASS：UL94 V-2
COLOR：NATURAL
TEMPERATURE：-40°C to 85°C
Unit: mm

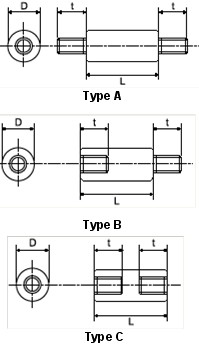

Part No.
THREAD
L
D
t
RNP-M2-6.5-L-Type
M2
10~105
6.5
6.0
RNP-M2-8-L-Type
8.0
RNP-M2.5-6.5-L-Type
M2.5
6.5
RNP-M2.5-8-L-Type
8.0
RNP-M3-6.5-L-Type
M3
6.5
RNP-M3-8-L-Type
8.0
RNP-M4-8-L-Type
M4
12.7-105
8.0
RNP-M4-9.5-L-Type
9.5
10.0
RNP-M5-9.5-L-Type
M5
19-105
9.5
RNP-M6-12.7-L-Type
M6
22-105
12.7
12.7
RNP-M8-15.9-L-Type
M8
30-105
15.9
14.0
RNP-M8-19-L-Type
19.0
RNP-M10-25-L-Type
M10
38-105
25.0
20.0



Part No.
THREAD
L
D
t
TYPE
RNP-M3-6.5-10-B
M3
10.0
6.5
6.0

B
RNP-M3-6.5-13-B
13.0
6.5
RNP-M3-6.5-50-B
50.0
6.5
RNP-M3-6.5-75-B
75.0
6.5
RNP-M3-8-10-B
10.0
8.0
RNP-M3-8-12-B
12.0
8.0
RNP-M4-8-20-B
M4
20.0
8.0
RNP-M4-9.5-12.7-B-6mm
12.7
9.5
RNP-M4-9.5-12.7-B

12.7

9.5

10.0
RNP-M5-19-20-B
M5
20.0
19.0
RNP-M3-6.5-13-C
M3
13.0
6.5
6.0
C
RNP-M3-8-10-C
10.0
8.0
RNP-M3-8-10.5-C
10.5
8.0
RNP-M3-8-12-C
12.0
8.0

Part No.
A
RNP-M4-9.5-12.7-B
10.0

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~



Part No.
THREAD
D
L
A
B
Type

Part No.
THREAD
D
L
A
B
Type
RNP-M2-5.9-30-A
M2
5.9
30
6.0
6.0
A
RNP-M3-6.5-25-A
M3
6.5
25
6.0
6.0
A
RNP-M2-5.9-30-B
5.9
30
6.0
6.0
B
RNP-M3-6.5-25-B
6.5
25
6.5
6.0
B
RNP-M2-5.9-30-C
5.9
30
6.0
6.0
C
RNP-M3-6.5-25-C
6.5
25
6.5
6.5
C
RNP-M3-6.5-10-C
M3
6.5
10
4.0
4.0
C
RNP-M4-8-25-A
M4
8.0
25
6.0
6.0
A
RNP-M3-6.5-12-A
M3
6.5
12
4.5
4.5
A
RNP-M4-8-25-B
8.0
25
6.0
6.0
B
RNP-M3-6.5-12-B
6.5
12
4.5
4.5
B
RNP-M4-8-25-C
8.0
25
6.0
6.0
C
RNP-M3-6.5-12-C
6.5
12
4.5
4.5
C
RNP-M4-9.5-15-C
M4
9.5
15
6.0
6.0
C
RNP-M3-6.5-13-A
M3
6.5
13
4.5
4.5
A
RNP-M5-9.5-45-A
M5
9.5
45
10.0
10.0
A
RNP-M3-6.5-13-B
6.5
13
4.5
4.5
B
RNP-M5-9.5-45-B
9.5
45
10.5
10.0
B
RNP-M3-6.5-13-C
6.5
13
4.5
4.5
C
RNP-M5-9.5-45-C
9.5
45
10.5
10.5
C
RNP-832-9.5-25.4-A
#8-32
9.5
25.4
6.4
6.4
A
RNP-1/420-15.9-31.7-A
1/4-20
15.9
31.7
11.1
11.1
A
RNP-832-9.5-25.4-B
9.5
25.4
4.8
6.4
B
RNP-1/420-15.9-31.7-B
15.9
31.7
8.33
11.1
B
RNP-832-9.5-25.4-C
9.5
25.4
4.8
4.8
C
RNP-1/420-15.9-31.7-C
15.9
31.7
8.33
8.33
C
RNP-832-9.5-57.2-A
#8-32
9.5
57.2
6.4
6.4
A
RNP-1/420-15.9-31.7L-A
1/4-20
15.9
31.7
14.27
14.27
A
RNP-832-9.5-57.2-B
9.5
57.2
4.8
6.4
B
RNP-1/420-15.9-31.7L-B
15.9
31.7
11.5
14.27
B
RNP-832-9.5-57.2-C
9.5
57.2
4.8
4.8
C
RNP-1/420-15.9-31.7L-C
15.9
31.7
11.5
11.5
C
