Hexagonal Nylon Pillar


Part No.
THREAD
L
W
A
B

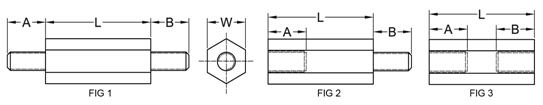

FIG
HNP-M2-L-FIG
M2
15~50
6.4
6.0
6.0
1 / 2 / 3
HNP-M2.5-L-FIG
M2.5
HNP-M3-L-FIG
M3
HNP-M4-L-FIG
M4
15~75
8.0
HNP-M5-L-FIG
M5
20~75
9.5
10.0
10.0
HNP-M6-L-FIG
M6
25~75
12.7
12.7
12.7
MATERIAL:NYLON 66+BRASS
FLAME CLASS：UL94 V-2
COLOR：NATURAL
TEMPERATURE：-40°C to 85°C
Unit: mm



Part No.
THREAD
L
W
A
B
HNP-M2.5-15-B
M2.5
15.0
6.4
6.0
6.0
HNP-M3-15-B
M3
5.6
5.6
HNP-M3-70-B
70.0
HNP-M4-25-B
M4
25.0
8.0
6.4
6.4
HNP-M4-55-B
55.0
HNP-M5-55-B
M5
55.0
9.5
10.0
10.0
HNP-M6-45-B
M6
45.0
12.7
13.0
13.0
HNP-M6-120-B
120.0
6.8
6.8



Part No.
A
HNP-M4-20-B
20.0
HNP-M4-57-B
57.0





Part No.
HNP-M4-15S-B





Part No.
B
HNP-M4-15X-B
6.0
HNP-M4-15L-B
8.0


Part No.
HNP-M5/M6-88.2-B




PPS+BRASS
Part No.
HNP-M2-7-10-B
Part No.
HNP-M3-5.4-10-B
Part No.
HNP-632-6-11.9-B

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~




Part No.
Size
L
A
B
W
FIG

Part No.
Size
L
A
B
W
FIG
HNP-M2.5-18-A
M2.5
18.0
6.0
6.0
6.4
1
HNP-M4-30-A
M4
30.0
6.0
6.0
8.0
1
HNP-M2.5-18-B
6.5
6.0
6.4
2
HNP-M4-30-B
6.0
6.0
8.0
2
HNP-M2.5-18-C
6.5
6.5
6.4
3
HNP-M4-30-C
6.0
6.0
8.0
3
HNP-M2.5-42-B
M2.5
42.0
6.0
6.0
6.0
1
HNP-M4-36-A
M4
36.0
6.0
6.0
8.0
1
HNP-M3-15-A
M3
15.0
6.0
6.0
6.4
1
HNP-M4-36-B
6.0
6.0
8.0
2
HNP-M3-15-B
6.5
6.0
6.4
2
HNP-M4-36-C
6.0
6.0
8.0
3
HNP-M3-15-C
6.5
6.5
6.4
3
HNP-M4-40-A
M4
40.0
6.0
6.0
8.0
1
HNP-M3-18-A
M3
18.0
6.0
6.0
6.4
1
HNP-M4-40-B
6.0
6.0
8.0
2
HNP-M3-18-B
6.5
6.0
6.4
2
HNP-M4-40-C
6.0
6.0
8.0
3
HNP-M3-18-C
6.5
6.5
6.4
3
HNP-M4-45-A
M4
45.0
6.0
6.0
8.0
1
HNP-M3-20-A
M3
20.0
6.0
6.0
6.4
1
HNP-M4-45-B
6.0
6.0
8.0
2
HNP-M3-20-B
6.5
6.0
6.4
2
HNP-M4-45-C
6.0
6.0
8.0
3
HNP-M3-20-C
6.5
6.5
6.4
3
HNP-M4-90-A
M4
90.0
6.0
6.0
9.5
1
HNP-M3-22-A
M3
22.0
6.0
6.0
6.4
1
HNP-M4-90-B
8.5
6.0
9.5
2
HNP-M3-22-B
6.5
6.0
6.4
2
HNP-M4-90-C
8.5
8.5
9.5
3
HNP-M3-22-C
6.5
6.5
6.4
3
HNP-M5-19-A
M5
19.0
10.0
10.0
9.5
1
HNP-M3-25-A
M3
25.0
6.0
6.0
6.4
1
HNP-M5-19-B
10.0
10.0
9.5
2
HNP-M3-25-B
6.5
6.0
6.4
2
HNP-M5-19-C
10.0
10.0
9.5
3
HNP-M3-25-C
6.5
6.5
6.4
3
HNP-M5-40-A
M5
40.0
10.0
10.0
9.5
1
HNP-M3-28-A
M3
28.0
6.0
6.0
6.4
1
HNP-M5-40-B
10.0
10.0
9.5
2
HNP-M3-28-B
6.5
6.0
6.4
2
HNP-M5-40-C
10.0
10.0
9.5
3
HNP-M3-28-C
6.5
6.5
6.4
3
HNP-M5-45-A
M5
45.0
10.0
10.0
9.5
1
HNP-M3-30-A
M3
30.0
6.0
6.0
6.4
1
HNP-M5-45-B
10.0
10.0
9.5
2
HNP-M3-30-B
6.5
6.0
6.4
2
HNP-M5-45-C
10.0
10.0
9.5
3
HNP-M3-30-C
6.5
6.5
6.4
3
HNP-M5-50-A
M5
50.0
10.0
10.0
9.5
1
HNP-M3-36-A
M3
36.0
6.0
6.0
6.4
1
HNP-M5-50-B
10.0
10.0
9.5
2
HNP-M3-36-B
6.5
6.0
6.4
2
HNP-M5-50-C
10.0
10.0
9.5
3
HNP-M3-36-C
6.5
6.5
6.4
3
HNP-M5-58-A
M5
58.0
10.0
10.0
9.5
1
HNP-M3-38-A
M3
38.0
6.0
6.0
6.4
1
HNP-M5-58S-A
8.0
8.5
9.5
HNP-M3-38-B
6.5
6.0
6.4
2
HNP-M5-58-B
10.0
10.0
9.5
2
HNP-M3-38-C
6.5
6.5
6.4
3
HNP-M5-58X-B
13.0
13.0
9.5
HNP-M3-40-A
M3
40.0
6.0
6.0
6.4
1
HNP-M5-58-C
10.0
10.0
9.5
3
HNP-M3-40-B
6.5
6.0
6.4
2
HNP-M5-70-A
M5
70.0
10.0
10.0
9.5
1
HNP-M3-40-C
6.5
6.5
6.4
3
HNP-M5-70-B
10.0
10.0
9.5
2
HNP-M3-41-A
M3
41.0
6.0
6.0
6.4
1
HNP-M5-70-C
10.0
10.0
9.5
3
HNP-M3-41-B
6.5
6.0
6.4
2
HNP-M5-84-A
M5
84.0
10.0
10.0
9.5
1
HNP-M3-41-C
6.5
6.5
6.4
3
HNP-M5-84-B
10.0
10.0
9.5
2
HNP-M3-45-A
M3
45.0
6.0
6.0
6.4
1
HNP-M5-84-C
10.0
10.0
9.5
3
HNP-M3-45-B
6.5
6.0
6.4
2
HNP-M5-88.2-A
M5
88.2
10.0
10.0
9.5
1
HNP-M3-45-C
6.5
6.5
6.4
3
HNP-M5-88.2-B
10.0
10.0
9.5
2
HNP-M4-12-A
M4
12.0
6.0
6.0
8.0
1
HNP-M5-88.2-C
10.0
10.0
9.5
3
HNP-M4-12-B
6.0
6.0
8.0
2
HNP-M5-90-A
M5
90.0
10.0
10.0
9.5
1
HNP-M4-12-C
6.0
6.0
8.0
3
HNP-M5-90-B
10.0
10.0
9.5
2
HNP-M4-15-A
M4
15.0
6.0
6.0
8.0
1
HNP-M5-90-C
10.0
10.0
9.5
3
HNP-M4-15-B
6.0
6.0
8.0
2
HNP-M6-50-A
M6
50.0
12.7
12.7
12.7
1
HNP-M4-15-C
6.0
6.0
8.0
3
HNP-M6-50-B
12.7
12.7
12.7
2
HNP-M4-20-A
M4
20.0
6.0
6.0
8.0
1
HNP-M6-50-C
12.7
12.7
12.7
3
HNP-M4-20-B
6.0
6.0
8.0
2
HNP-M6-55-A
M6
55.0
12.7
12.7
12.7
1
HNP-M4-20-C
6.0
6.0
8.0
3
HNP-M6-55-B
12.7
12.7
12.7
2
HNP-M4-22-A
M4
22.0
6.0
6.0
8.0
1
HNP-M6-55-C
12.7
12.7
12.7
3
HNP-M4-22-B
6.0
6.0
8.0
2
HNP-M6-60-A
M6
60.0
12.7
12.7
12.7
1
HNP-M4-22-C
6.0
6.0
8.0
3
HNP-M6-60-B
12.7
12.7
12.7
2
HNP-M4-27-A
M4
27.0
6.0
6.0
8.0
1
HNP-M6-60-C
12.7
12.7
12.7
3
HNP-M4-27-B
6.0
6.0
8.0
2

HNP-M4-27-C
6.0
6.0
8.0
3
