车轮型开扣式护线环 Push Snap-in Grommet
|
|
材质：PA66
防火等级：UL 94V-2/ V0
颜色：黑色/白色
操作温度：-40°C to 85°C
Unit: mm |
|
|
Part No.
|
安装孔径
|
A
|
线缆直径
|
C
|
|
PSGC-1911
|
19.0~19.1
|
21.8
|
12.7
|
9.9
|
|
PSGC-2212
|
22.2~22.4
|
23.8
|
14.3
|
11.5
|
|
PSGC-2612
|
25.4~25.5
|
27.0
|
19.0
|
11.5
|
|
PSGC-2812
|
27.8~28.0
|
29.5
|
20.7
|
11.5
|
|
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
|

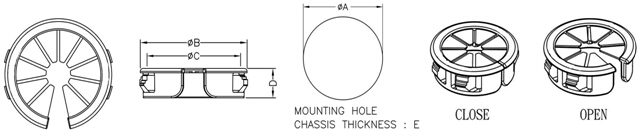

Part No.
|
A
|
B
|
C
|
D
|
E
|
|
PSGC-1910
|
19.0
|
22.6
|
3.5
|
9.8
|
0.8~3.2
|
|
PSGC-2505
|
25.4
|
29.0
|
6.0
|
5.3
|
0.8~1.0
|
|
PSGC-2511
|
25.4
|
29.0
|
6.0
|
11.4
|
0.8~3.0
|
|
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|

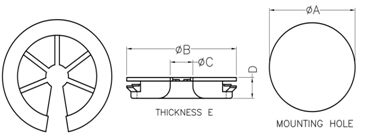

Part No.
|
A
|
B
|
C
|
D
|
E
|
|
PSGC-1310
|
12.7
|
15.3
|
10.3
|
9.8
|
0.8~3.3
|
|
PSGC-1614
|
15.9
|
18.8
|
13.8
|
10.3
|
|
PSGC-2219
|
22.2
|
25.5
|
18.5
|
10.3
|
|
PSGC-2812
|
27.8
|
31.5
|
25.5
|
7.0
|
0.6~1.2
|
|
PSGC-2829
|
31.8
|
38.7
|
29.3
|
10.3
|
0.8~3.3
|
|
PSGC-2831
|
34.9
|
39.2
|
31.2
|
10.3
|
|
PSGC-3833
|
38.1
|
42.6
|
32.6
|
10.7
|
|
|
|
|
