箭头固定式电路板间隔柱 Arrow Locking Circuit Board Support
 |
材质：PA66
防火等级：UL 94V-2/ V0
颜色：自然色.
操作温度：-40°C to 85°C
Unit: mm |
|

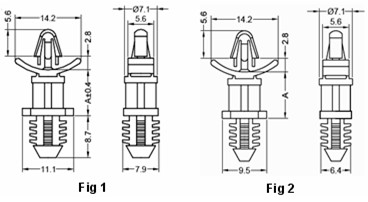

FIG
|
安装孔径
|
板厚
|
|
顶部
|
底部
|
顶部
|
底部
|
|
1
|
4.0±0.08
|
7.92±0.08
|
0.79~1.98
|
6.4mm
|
|
2
|
6.35±0.08
|
|
|
Part No.
|
A
|
|
FIG 1
|
FIG 2
|
±0.4mm
|
|
BLCS-201
|
BLCS-301
|
4.8
|
|
BLCS-204
|
BLCS-304
|
6.4
|
|
BLCS-206
|
BLCS-306
|
9.5
|
|
BLCS-207
|
BLCS-307
|
11.1
|
|
BLCS-208
|
BLCS-308
|
12.7
|
|
BLCS-210
|
BLCS-310
|
15.9
|
|
BLCS-212
|
BLCS-312
|
19.1
|
|
BLCS-214
|
BLCS-314
|
22.2
|
|
