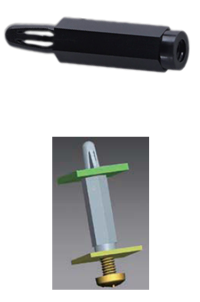

公制内螺纹六角尼龙支撑柱 Metric Hexagonal Nylon Threaded Spacer

Part No.
M
A
B
D
L
C
Panel Thickness
MTCBS-T1-M3-6-8B
M3
1.5
6.0
6.0
8.0
2.0
1.6~1.9
MTCBS-T1-M3-6-10B
M3
1.5
8.0
6.0
10.0
1.7
1.6
MTCBS-T1-M3-6-12B
M3
1.5
8.0
6.0
12.0
1.7
1.6
MTCBS-T1-M3-6-15B
M3
2.2
7.6
6.0
15.0
1.7
1.6
MTCBS-T1-M3-6-20B
M3
2.2
10.0
6.0
20.0
1.8
1.7
MTCBS-T1-M3-6-22B
M3
2.2
10.0
6.0
22.0
1.8
1.7
MTCBS-T1-M3-6-25B
M3
2.2
10.0
6.0
25.0
1.8
1.7
MTCBS-T1-M3-8-23B
M3
4.5
10.0
8.0
23.0
1.7
1.6
MTCBS-T1-M3-8-8B
M3
1.5
6.0
8.0
8.0
1.7
1.6
MTCBS-T2-M3-6-12B
M3
1.35
10.0
6.0
12.0
2.0
1.6~1.9
MTCBS-T2-M3-6-14B
M3
1.35
10.0
6.0
14.0
2.0
1.6~1.9
MTCBS-T2-M3-6-15B
M3
1.35
10.0
6.0
15.0
2.0
1.6~1.9
MTCBS-T2-M4-8-9B
M4
2.2
8.0
8.0
9.0
2.2
2.1
MTCBS-T1-M4-8-10B
M4
1.4
8.0
8.0
10.0
1.7
1.6
MTCBS-T1-M4-8-12B
M4
1.4
10.0
8.0
12.0
1.8
1.7
MTCBS-T1-M4-8-15B
M4
1.4
8.0
8.0
15.0
1.7
1.6
MTCBS-T2-M4-8-18B
M4
2.2
10.0
8.0
18.0
2.2
2.1
MTCBS-T1-M4-8-30SB
M4
5.0
10.0
8.0
30.0
1.7
1.6
MTCBS-T1-M4-8-30B
M4
5.0
10.0
8.0
30.0
1.8
1.7
MTCBS-T2-M4-8-30B
M4
5.0
10.0
8.0
30.0
2.2
2.1
MTCBS-T2-M4-8-35B
M4
5.0
10.0
8.0
35.0
2.2
2.1
MTCBS-T2-M4-8-14B
M4
1.4
10.0
8.0
14.0
2.2
2.1
MTCBS-T1-M4-8-70B
M4
12.6
12.6
8.0
70.0
1.7
1.6
材质:PA66
防火等级:UL94 V-2/ V0
颜色:自然色--W,黑色--B
操作温度:-40°C to 85°C
Unit: mm

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Part No.
Thread M
A
B
C
L
T
Panel Thickness
FIG
MTCBS-T1-M3-6-17B
M3
2.2
10.0
6.0
17.0
1.8
1.6~1.7

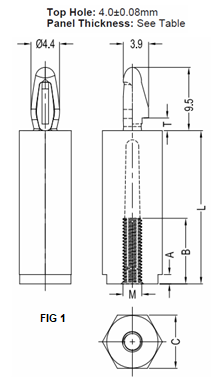

1
MTCBS-T1-M3-6-5B
M3
0.5
4.0
6.0
5.0
1.7
1.5-1.6
MTCBS-T1-M3-6-6B
M3
0.5
4.0
6.0
6.0
1.7
1.5-1.6
MTCBS-T2-M3-6-6B
M3
0.5
4.0
6.0
6.0
2.2
2.0-2.1
MTCBS-T1-M3-6-7B
M3
2.2
5.5
6.0
7.0
1.7
1.5-1.6
MTCBS-T2C-M3-6-8B
M3
1.5
6.0
6.0
8.0
2.0
1.8-1.9
MTCBS-T2-M3-6-8B
M3
1.5
6.0
6.0
8.0
2.2
2.0-2.1
MTCBS-T1-M3-6-9B
M3
1.5
6.0
6.0
9.0
1.7
1.5-1.6
MTCBS-T1-M3-6-10B
M3
1.5
8.0
6.0
10.0
1.7
1.5-1.6
MTCBS-T2-M3-6-10B
M3
1.5
8.0
6.0
10.0
2.2
2.0-2.1
MTCBS-T1-M3-6-12B
M3
1.35
10.0
6.0
12.0
1.7
1.5-1.6
MTCBS-T2C-M3-6-12B
M3
1.35
10.0
6.0
12.0
2.0
1.8-1.9
MTCBS-T2C-M3-6-14B
M3
1.35
10.0
6.0
14.0
2.0
1.8-1.9
MTCBS-T1-M3-6-15B
M3
1.35
7.6
6.0
15.0
1.7
1.5-1.6
MTCBS-T2C-M3-6-15B
M3
2.2
10.0
6.0
15.0
1.7
1.5-1.6
MTCBS-T1-M3-6-18B
M3
2.2
10.0
6.0
18.0
1.7
1.5-1.6
MTCBS-T1-M3-6-20B
M3
2.2
10.0
6.0
20.0
1.8
1.6-1.7
MTCBS-T1-M3-6-22B
M3
2.2
10.0
6.0
22.0
1.8
1.6-1.7
MTCBS-T1-M3-6-25B
M3
2.2
10.0
6.0
25.0
1.8
1.6-1.7
MTCBS-T2-M3-6-25B
M3
2.2
10.0
6.0
25.0
2.2
2.0-2.1
MTCBS-T1-M3-6-30B
M3
2.2
10.0
6.0
30.0
1.7
1.5-1.6
MTCBS-T1-M3-6-31B
M3
2.2
10.0
6.0
31.0
1.7
1.5-1.6
MTCBS-T1-M3-6-35B
M3
2.2
10.0
6.0
35.0
1.7
1.5-1.6
MTCBS-T1-M3-6-40B
M3
2.2
10.0
6.0
40.0
1.7
1.5-1.6
MTCBS-T1-M3-6-45B
M3
2.2
10.0
6.0
45.0
1.7
1.5-1.6
MTCBS-T2-M3-6-50B
M3
2.2
10.0
6.0
50.0
2.2
2.0-2.1
MTCBS-T1-M3-8-5B
M3
1.0
3.0
8.0
5.0
1.7
1.5-1.6
MTCBS-T1-M3-8-7B
M3
1.0
4.0
8.0
7.0
1.7
1.5-1.6
MTCBS-T1-M3-8-8B
M3
1.5
6.0
8.0
8.0
1.7
1.5-1.6
MTCBS-T2-M3-8-8B
M3
1.5
6.0
8.0
8.0
2.2
2.0-2.1
MTCBS-T1-M3-8-10B
M3
1.5
8.0
8.0
10.0
1.7
1.5-1.6
MTCBS-T1-M3-8-12B
M3
1.5
10.0
8.0
12.0
1.7
1.5-1.6
MTCBS-T2-M3-6-12B
M3
1.5
10.0
8.0
12.0
2.2
2.0-2.1
MTCBS-T1-M3-8-23B
M3
4.5
10.0
8.0
23.0
1.7
1.5-1.6
MTCBS-T1-M4-8-5B
M4
1.2
4.0
8.0
5.0
1.7
1.5-1.6

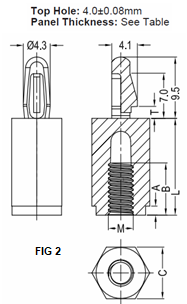

2
MTCBS-T1-M4-8-6B
M4
1.2
4.0
8.0
6.0
1.7
1.5-1.6
MTCBS-T2-M4-8-6B
M4
1.2
4.0
8.0
6.0
2.2
2.0-2.1
MTCBS-T1-M4-8-7B
M4
1.2
4.0
8.0
7.0
1.7
1.5-1.6
MTCBS-T2-M4-8-7B
M4
1.2
4.0
8.0
7.0
2.2
2.0-2.1
MTCBS-T1-M4-8-8B
M4
1.4
6.0
8.0
8.0
1.7
1.5-1.6
MTCBS-T2-M4-8-8B
M4
1.4
6.0
8.0
8.0
2.2
2.0-2.1
MTCBS-T1-M4-8-9B
M4
2.2
7.0
8.0
9.0
1.7
1.5-1.6
MTCBS-T2-M4-8-9B
M4
2.2
7.0
8.0
9.0
2.2
2.0-2.1
MTCBS-T1-M4-8-10B
M4
1.4
8.0
8.0
10.0
1.7
1.5-1.6
MTCBS-T2-M4-8-10B
M4
1.4
8.0
8.0
10.0
2.2
2.0-2.1
MTCBS-T1-M4-8-12B
M4
1.4
10.0
8.0
12.0
1.8
1.6-1.7
MTCBS-T2-M4-8-12B
M4
1.4
10.0
8.0
12.0
2.2
2.0-2.1
MTCBS-T1-M4-8-13B
M4
1.4
10.0
8.0
13.0
1.8
1.6-1.7
MTCBS-T2-M4-8-14B
M4
1.4
10.0
8.0
14.0
2.2
2.0-2.1
MTCBS-T1-M4-8-15B
M4
1.4
8.0
8.0
15.0
1.7
1.5-1.6
MTCBS-T1-M4-8-18B
M4
2.2
10.0
8.0
18.0
1.7
1.5-1.6
MTCBS-T2-M4-8-18B
M4
2.2
10.0
8.0
18.0
2.2
2.0-2.1
MTCBS-T1-M4-8-20B
M4
1.4
10.0
8.0
20.0
1.7
1.5-1.6
MTCBS-T1-M4-8-23B
M4
1.4
10.0
8.0
23.0
1.8
1.6-1.7
MTCBS-T1-M4-8-25B
M4
1.4
10.0
8.0
25.0
1.7
1.5-1.6
MTCBS-T2-M4-8-25B
M4
1.4
10.0
8.0
25.0
2.2
2.0-2.1
MTCBS-T1-M4-8-30B
M4
1.8
10.0
8.0
30.0
1.7
1.5-1.6
MTCBS-T1C-M4-8-30B
M4
5.0
10.0
8.0
30.0
1.7
1.5-1.6
MTCBS-T2-M4-8-30B
M4
5.0
10.0
8.0
30.0
1.8
1.6-1.7
MTCBS-T2C-M4-8-30B
M4
5.0
10.0
8.0
30.0
2.2
2.0-2.1
MTCBS-T2-M4-8-35B
M4
5.0
10.0
8.0
35.0
2.2
2.0-2.1
MTCBS-T1-M4-8-40B
M4
5.0
10.0
8.0
40.0
1.7
1.5-1.6
MTCBS-T1-M4-8-45B
M4
2.5
10.0
8.0
45.0
1.7
1.5-1.6
MTCBS-T2-M4-8-45B
M4
2.5
10.0
8.0
45.0
2.2
2.0-2.1
MTCBS-T1-M4-8-50B
M4
5.0
10.0
8.0
50.0
1.7
1.5-1.6
MTCBS-T2-M4-8-50B
M4
2.5
10.0
8.0
50.0
2.2
2.0-2.1
MTCBS-T1-M4-8-60B
M4
2.5
10.0
8.0
60.0
1.7
1.5-1.6
MTCBS-T1-M4-8-70B
M4
12.6
12.6
8.0
70.0
1.7
1.5-1.6
