材质:插销--尼龙6,
销套--PC
防火等级：UL 94V-2
颜色:黑色--BK,白色---W
Unit:mm |
|
|
Part No.
|
A
|
L
|
Part No.
|
A
|
L
|
T
|
T1
|
|

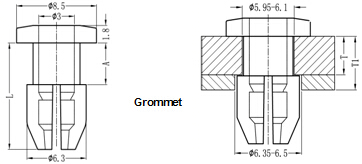

PIN FIG 1
|
PIN FIG 2
|
Grommet FIG 3
|
|
SLPL-SL
|
SLPB-SL
|
2.8
|
10.7
|
SLG-SL
|
1.2
|
8.6
|
1.1
|
1.5~3.7
|
|
SLPL-1L
|
SLPB-1L
|
3.4
|
11.3
|
SLG-1L
|
1.7
|
9.0
|
1.6
|
2.0~4.2
|
|
SLPL-21L
|
|
SLPL-2L
|
SLPB-2L
|
4.4
|
12.3
|
SLG-2L
|
2.7
|
10.0
|
2.5
|
3.0~5.2
|
|
SLPL-3L
|
SLPB-3L
|
6
|
13.9
|
SLG-3L
|
4.3
|
11.7
|
4.1
|
4.6~6.9
|
|
SLPL-4L
|
SLPB-4L
|
7.2
|
15.1
|
SLG-4L
|
5.5
|
12.9
|
5.3
|
5.8~8.0
|
|
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
|
|
Part No.
|
A
|
L
|
Part No.
|
A
|
L
|
T
|
T1
|
|
PIN
|
Grommet
|
|
SLPB-1M
|
2.5
|
10.3
|
SLG-1M
|
1.2
|
8.0
|
1.1
|
1.5~3.7
|
|
SLPB-2M
|
3.0
|
10.8
|
SLG-2M
|
1.7
|
8.5
|
1.6
|
2.0~4.2
|
|
SLPB-3M
|
4.0
|
11.8
|
SLG-3M
|
2.7
|
9.5
|
2.5
|
3.0~5.2
|
|
SLPB-4M
|
5.3
|
13.1
|
SLG-4M
|
4.3
|
11.0
|
4.1
|
4.6~6.9
|
|
