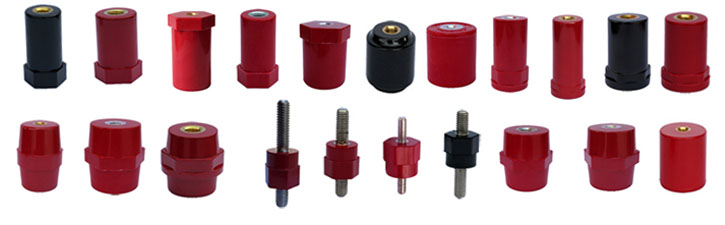

耐高压绝缘柱 High Voltage Insulator
 |
材质：成型材料BMC/PF
内嵌螺母：铜/铝/钢镀镍.
颜色：红色，黑色--BK.
Unit:mm
接受订制 |
 |
|
Part No.
|
M
|
A
|
B
|
C
|
D
|
E
|
F
|
L
|
材质（材料+螺母+螺母）
|
FIG
|
|
CS2-M8-30-C
|
M8
|
8.0
|
9.5
|
8.0
|
24.0
|
30.0
|
27.0
|
30.0
|
PF 红/黑+铝+铝
|
3
|
|
CS2-M8-30-XC
|
M8
|
10.5
|
9.5
|
10.5
|
24.0
|
24.0
|
27.0
|
30.0
|
PF 红+铜+铜
|
|
CS2-M8-40-C
|
M8
|
8.0
|
10.5
|
8.0
|
32.0
|
40.0
|
36.0
|
40.0
|
PF 红+铝+铝
|
|
CS2-M8-40-SC
|
M8
|
8.0
|
10.5
|
8.0
|
32.0
|
40.0
|
36.0
|
40.0
|
BMC/PF红/黑+铝+铝
|
|
CS2-M8-40-XC
|
M8
|
10.5
|
10.5
|
10.5
|
32.0
|
40.0
|
36.0
|
40.0
|
BMC 红+铝+铝
|
|
CS2-M10-40-C
|
M10
|
11.0
|
10.5
|
11.0
|
32.0
|
40.0
|
36.0
|
40.0
|
PF 黑+铝+铝
|
|
CS2-M10-40-XC
|
M10
|
12.0
|
10.5
|
12.0
|
32.0
|
40.0
|
36.0
|
40.0
|
PF红/黑+铝+铝
|
|
