粘贴固定式电路板间隔柱 Adhesive Tape Mountable Circuit Board Support
 |
 |
 |
材质：PA66
防火等级：UL 94V-2/ V0
颜色：自然色
操作温度：-40°C to 85°C
Unit: mm |
|
Part No.
|
A
|
|

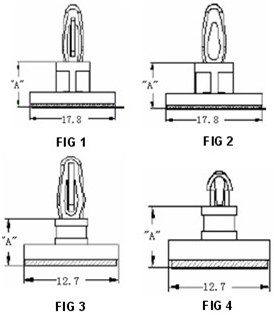

FIG 1
|
FIG 2
|
FIG 3
|
FIG 4
|
±0.4mm
|
|
TMCBS-103
|
TMCBS-203
|
TMCBS-303
|
TMCBS-403
|
4.8
|
|
TMCBS-104
|
TMCBS-204
|
TMCBS-304
|
TMCBS-404
|
6.4
|
| |
|
TMCBS-305
|
TMCBS-405
|
7.9
|
|
TMCBS-106
|
TMCBS-206
|
TMCBS-306
|
TMCBS-406
|
9.5
|
| |
|
TMCBS-307
|
TMCBS-407
|
11.1
|
|
TMCBS-108
|
TMCBS-208
|
TMCBS-308
|
TMCBS-408
|
12.7
|
| |
|
TMCBS-309
|
TMCBS-409
|
14.3
|
|
TMCBS-110
|
TMCBS-210
|
TMCBS-310
|
TMCBS-410
|
15.9
|
|
TMCBS-112
|
TMCBS-212
|
|
TMCBS-412
|
19.1
|
|
TMCBS-114
|
TMCBS-214
|
|
|
22.2
|
|
TMCBS-116
|
TMCBS-216
|
|
|
25.4
|
|
TMCBS-118
|
TMCBS-218
|
|
|
28.6
|
|
 |
|
|
FIG
|
安装孔径
|
板厚
|
|
1
|
4.0±0.08mm
|
1.6mm
|
|
2
|
|
3
|
3.2±0.05mm
|
|
4
|
2.54±0.05mm
|
|
