盲孔固定式电路板间隔柱 Blind Hole Circuit Board Support
 |
材质：PA66
防火等级：UL 94V-2/ V-0
颜色：自然色
操作温度：-40°C to 85°C
Unit: mm |
|
|
|
Part No.
|
A
|
|

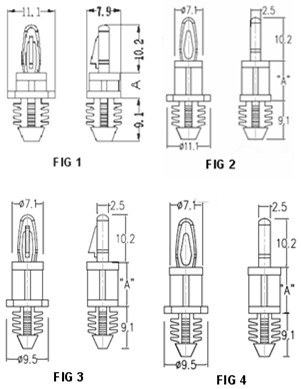

FIG 1
|
FIG 2
|
FIG 3
|
FIG 4
|
±0.4mm
|
|
BLCS-103
|
BLCS-403
|
BLCS-503
|
BLCS-603
|
4.8
|
|
BLCS-104
|
BLCS-404
|
BLCS-504
|
BLCS-604
|
6.4
|
|
BLCS-106
|
BLCS-406
|
BLCS-506
|
BLCS-606
|
9.5
|
|
BLCS-107
|
BLCS-407
|
BLCS-507
|
BLCS-607
|
11.1
|
|
BLCS-108
|
BLCS-408
|
BLCS-508
|
BLCS-608
|
12.7
|
|
BLCS-110
|
BLCS-410
|
BLCS-510
|
BLCS-610
|
15.9
|
|
BLCS-112
|
BLCS-412
|
BLCS-512
|
BLCS-612
|
19.1
|
|
BLCS-114
|
BLCS-414
|
BLCS-514
|
BLCS-614
|
22.2
|
|
BLCS-116
|
BLCS-416
|
BLCS-516
|
BLCS-616
|
25.4
|
|
|
FIG
|
安装孔径
|
板厚
|
|
顶部
|
底部
|
顶部
|
底部
|
|
1
|
4.0±0.08
|
7.9±0.08
|
1.6
|
Min 6.4
|
|
2
|
|
3
|
6.4±0.08
|
|
4
|
|
