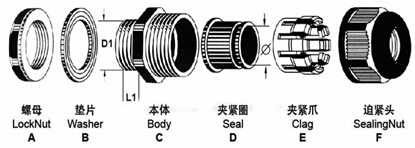

公制分体式电缆接头 Nylon Cable Gland

MATERIAL:A,C,E,F--NYLON66 ; B;D--NBR FLAME CLASS:UL94 V-2  TEMPERATURE:-40°C to 85°C  Unit:mm
COLOR:WHITE--W,BLACK--BK Protection Degree:Useing suitable O-sealings within the clamping range,Its protection degree can reach IP67



Part No.
螺规格
适应电缆外径
螺纹外径
机板开孔
螺纹长度
扳手尺寸
Thread
Cable Range Φ
D1
Panel Mounting Hole
L1
Spanner Size A&F
NCGF-M12
M12*1.5
3~5.3
12
12~12.3
8.5
18/19
NCGF-M12L
4~8
12
12~12.3
8.5
18/19
NCGF-M16
M16*1.5
4~7
16
16~16.3
15
22/22
NCGF-M16L
6~10
16
16~16.3
15
22/22
NCGF-M20
M20*1.5
4~6
20
20~20.3
15
27/27
NCGF-M20L
6~11
20
20~20.3
15
27/27
NCGF-M20XL
9~14
20
20~20.3
15
27/27
NCGF-M25
M25*1.5
10~16
25
25~25.3
15
33/33
NCGF-M25L
13~18
25
25~25.3
15
33/33
NCGF-M32
M32*1.5
15~22
32
32~32.3
15
41/42
NCGF-M32L
18~25
32
32~32.3
15
41/42
NCGF-M40
M40*1.5
20~26
40
40~40.3
20
50/52
NCGF-M40L
24~31
40
40~40.3
20
50/52
NCGF-M50
M50*1.5
25~33
50
50~50.3
22
62/62
NCGF-M50L
30~41
50
50~50.3
22
62/62
NCGF-M63
M63*1.5
39~46
63
63~63.3
25
75/75
NCGF-M63L
40~51
63
63~63.3
25
75/75
NCGF-M75
M75*2.0
50~56
75
75~75.3
25
92/92
NCGF-M75L
55~66
75
75~75.3
25
92/92
NCGF-M90
M90*2.0
58~68
90
90~90.3
25
110/110
NCGF-M90L
65~77
90
90~90.3
25
110/110
NCGF-M16-5
M16*1.5
3~5.5
16
16~16.3
10
22/19
NCGF-M16-8
4~8
16
16~16.3
10
22/19
NCGF-M16-7
4~7
16
16~16.3
10
22/22
NCGF-M16-10
6~10
16
16~16.3
10
22/22
NCGF-M20-9
M20*1.5
5~9
20
20~20.3
10
24/24
NCGF-M20-12
6~12.5
20
20~20.3
10
24/24
NCGF-M20-11
6~11
20
20~20.3
10
27/27
NCGF-M20-14
9~14
20
20~20.3
10
27/27
NCGF-M25-11
M25*1.5
6~11
25
25~25.3
10
33/27
NCGF-M25-14
9~14
25
25~25.3
10
33/27
NCGF-M25-16
10~16
25
25~25.3
10
33/33
NCGF-M25-18
13~18
25
25~25.3
10
33/33
