端接式金属软管接头 Metal Flexible Conduit Fittings

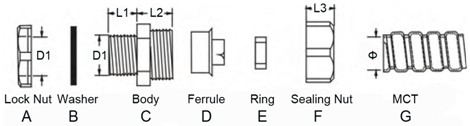

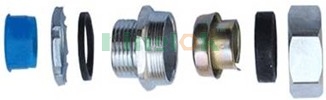

材质:A,C,F--加厚型锌合金
            B,E---丁晴橡胶(NBR)
            D --铁皮片铸制成
防护等级:IP65
操作温度:-40°C~100°C,瞬间可耐热达120°C ,颜色:银白色
Unit:mm

Part No.
螺牙标准
配套Kinglok金属软管 MCT
螺纹外径
螺纹长度
接合长度
锌合金
黄铜镀镍
G/M/PG
Part No.
mm
Inch
D1
L1
L2+L3
管螺纹 ESU-G
ESU-G1/4

G1/4"
MCT-606
6
3/16"
13.2
8
16
ESU-G1/4L
TESU-G1/4L
MCT-08
8
5/16"
ESU-G3/8
TESU-G3/8
G3/8"
MCT-10
10
1/4"
16.5
8
17
ESU-G3/8L
TESU-G3/8L
MCT-13
13
3/8"
18
ESU-G1/2
TESU-G1/2
G1/2"
MCT-16
16
1/2"
21.3
11
23
ESU-G3/4
TESU-G3/4
G3/4"
MCT-20
20
3/4"
26.6
14
22
ESU-G1
TESU-G1
G1"
MCT-25
25
1"
33.4
15
28
ESU-G1 1/4
TESU-G1 1/4
G1 1/4"
MCT-32
32
11/4"
42.1
15
30
ESU-G1 1/2
TESU-G1 1/2
G1 1/2"
MCT-38
38
11/2"
47.8
16
32
ESU-G2
TESU-G2
G2"
MCT-51
51
2"
59.6
18
34
ESU-G2 1/2

G2 1/2"
MCT-64
64
2 1/2"
75.1
22
38
ESU-G3

G3"
MCT-80
80
3"
87.8
22
46
ESU-G4

G4"
MCT-100
100
4"
113
24
50
公制螺纹 ESU-M
ESU-M14

M14*1.5
MCT-06
6
3/16"
M14*1.5
8
16
ESU-M14L

MCT-08
8
5/16"
ESU-M16
TESU-M16
M16*1.5
MCT-10
10
1/4"
M16*1.5
8
17
ESU-M16L
TESU-M16L
MCT-13
13
3/8"
18
ESU-M20
TESU-M20
M20*1.5
MCT-16
16
1/2"
M20*1.5
11
23
ESU-M25
TESU-M25
M25*1.5
MCT-20
20
3/4"
M25*1.5
14
22
ESU-M32
TESU-M32
M32*1.5
MCT-25
25
1"
M32*1.5
15
28
ESU-M40
TESU-M40
M40*1.5
MCT-32
32
11/4"
M40*1.5
15
30
ESU-M50
TESU-M50
M50*1.5
MCT-38
38
1 1/2
M50*1.5
16
32
ESU-M63
TESU-M63
M63*1.5
MCT-51
51
2"
M63*1.5
18
34
ESU-M76

M76*2
MCT-64
64
2 1/2"
M76*2
22
38
ESU-M88

M88*2
MCT-80
80
3"
M88*2
22
46
ESU-M114

M114*2
MCT-100
100
4"
M114*2
24
50
德制螺纹 ESU-PG
ESU-PG9
TESU-PG9
PG9
MCT-10
10
1/4"
15.2
8
16
ESU-PG11
TESU-PG11
PG11
MCT-13
13
3/8"
18.6
9
17
ESU-PG13.5
TESU-PG13.5
PG13.5
MCT-16
16
1/2"
20.4
11
23
ESU-PG21
TESU-PG21
PG21
MCT-20
20
3/4"
28.3
14
23
ESU-PG29
TESU-PG29
PG29
MCT-25
25
1"
37
15
28
ESU-PG29L
TESU-PG29L
MCT-32
32
1 1/4"
30
ESU-PG36
TESU-PG36
PG36
MCT-38
38
11/2"
47
16
32
ESU-PG48
TESU-PG48
PG48
MCT-51
51
2"
59.3
18
34
