弯角型尼龙防水接头 Nylon Cable Gland
 |
|

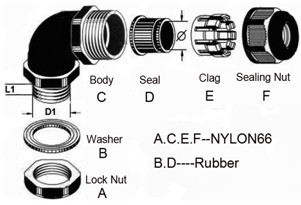

MATERIAL:A,C,E,F--NYLON66
B,D--Rubber
FLAME CLASS：UL 94V-2
TEMPERATURE：-50°C to 150°C
COLOR:WHITE--W,BLACK--BK Protection Degree:Useing suitable O-sealings within the clamping range,Its protection degree can reach IP68
Unit：mm |
|
Part No.
|
螺牙规格
|
螺纹外径Thread
|
机板口径
|
螺纹长度 L1
|
板手 A&F
|
适应电缆外径
|
|
Thread
|
O.D. D1
|
Panel Mounting Hole
|
Thread Length
|
Spanner size
|
Cable Range Φ
|
|
QNCG-M16
|
M16*1.5
|
16
|
16~16.3
|
10
|
22/22
|
4~7
|
|
QNCG-M16L
|
6~10
|
|
QNCG-M20
|
M20*1.5
|
20
|
20~20.3
|
15
|
27/27
|
6~11
|
|
QNCG-M20L
|
9~14
|
|
QNCG-M25
|
M25*1.5
|
25
|
25~25.3
|
15
|
33/33
|
10~16
|
|
QNCG-M25L
|
13~18
|
|
QNCG-M32
|
M32*1.5
|
32
|
32~32.3
|
15
|
41/42
|
15~22
|
|
QNCG-M32L
|
18~25
|
|
QNCG-M40
|
M40*1.5
|
40
|
40~40.3
|
20
|
50/52
|
20~25
|
|
QNCG-M40L
|
24~30
|
|
