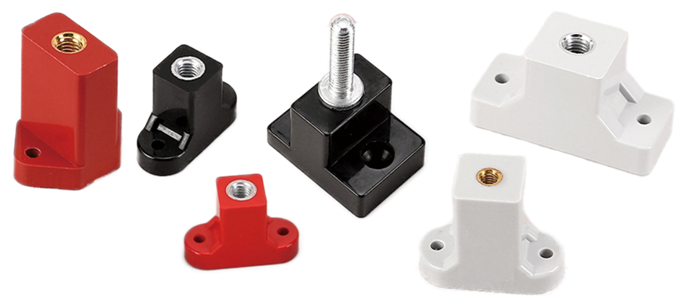

耐高压绝缘柱 High Voltage Insulator
|
|
|
■工作温度:-40~+140°C
■嵌件:黄铜，铁,铝,不锈钢;嵌件部分:螺钉、螺杆、螺母皆可，外露或内嵌尺寸根据应用环境选型
■材料:不饱和聚酯树脂玻璃纤维增强模压塑料(BMC)( SMC)
■颜色、 嵌件、材料性能可依客户需求定制
■Unit:mm
|
|
|
|
Part No.
|
螺纹
|
H
|
W
|
d
|
D
|
|
CS13-M5-30-TYPE
|
M5
|
30
|
18
|
4.5
|
32
|
|
CS13-M6-30-TYPE
|
M6
|
30
|
18
|
4.5
|
32
|
|
CS13-M8-30-TYPE
|
M8
|
30
|
18
|
4.5
|
32
|
|
CS13-M6-40-TYPE
|
M6
|
40
|
22
|
4.5
|
36
|
|
CS13-M8-40-TYPE
|
M8
|
40
|
22
|
4.5
|
36
|
|
CS13-M10-37-TYPE
|
M10
|
37
|
30
|
6.6
|
55
|
|
CS13-M10-45-TYPE
|
M10
|
45
|
30
|
6.6
|
55
|
|
CS13-M10-50-TYPE
|
M10
|
50
|
36
|
6.2
|
34
|
|
