迷你型塑料电缆接头 Mini Nylon Cable Gland

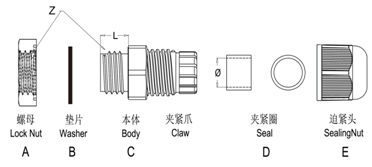

MATERIAL:A,C,E----PA66;B,D--NBR
Unit:mm |
|
|
Part No.
|
Z
|
L
|
适应电缆外径
|
机板开孔
|
扳手尺寸
|
|
Thread
|
Cable Range Φ
|
Panel Mounting Hole
|
Spanner Size A&F
|
|
PCG-M8(1.0~2.5)
|
M8x1.25
|
7.5
|
1.0~2.5
|
8.0~8.3
|
13/12
|
|
PCG-M8(2.5~4.5)
|
M8x1.25
|
7.5
|
2.5~4.5
|
8.0~8.3
|
13/12
|
|
PCG-M10(1.5~3.1)
|
M10x1.5
|
8
|
1.5~3.1
|
10.0~10.3
|
15/13
|
|
PCG-M10(3.0~6.0)
|
M10x1.5
|
8
|
3.0~6.0
|
10.0~10.3
|
15/13
|
|
PCG-M12(1.5~3.1)
|
M12x1.5
|
8
|
1.5~3.1
|
12.0~12.3
|
18/13
|
|
PCG-M12(3.0~6.0)
|
M12x1.5
|
8
|
3.0~6.0
|
12.0~12.3
|
18/13
|
|
