Round Cable Suppression Cores
 MATERIAL:Nylon 6/6+A5
COLOR:BLACK
Unit:mm
Part No.
A
B
C
D
E
Max.Cable Dia.
Impedance(Ω)

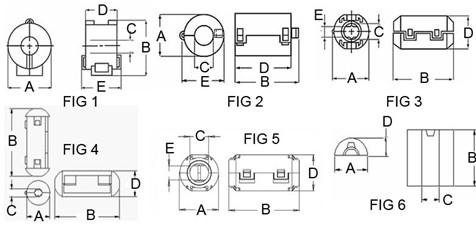

FIG
25MHz
100MHz
RC-0817-8.0
19.5
23.0
8.0
17.0
23.0
8.0
60
120
1
RC-0820-8.0
23.4
8.2
20.0
26.1
75
160
RC-1013-10.0
24.5
28.5
10.2
13.5
20.0
10.0
50
105
RC-3218-11.5
28.0
31.5
11.5
18.0
24.0
11.5
70
140
RC-3316-15.0
29.0
33.0
15.0
15.5
21.5
15.0
45
100
RC-2218-7.0
14.0
22.0
7.0
18.0
15.5
7.0
47
101
2
RC-3531-9.0
19.5
35.0
9.5
31.0
20.0
9.0
120
190
RC-3632-11.0
20.5
36.0
11.0
31.5
20.5
11.0
98
160
RC-3934-13.0
30.75
39.0
13.0
34.0
31.0
13.0
140
225
RC-2612-3.5
13.0
25.5
5.0
12.0
2.4
3.5
93
158
3
RC-3015-4.0
17.0
30.0
7.0
15.0
3.0
4.0
115
180
RC-3618-8.0
19.5
36.0
9.5
18.0
6.5
8.0
130
200
RC-3618-9.0
20.0
9.0
120
190
RC-3622-12.0
23.0
36.0
13.5
22.0
10.0
12.0
90
140
RC-3920-7.0
20.0
39.0
8.5
20.0
N/A
7.0
150
260
4
RC-3622-4.0
23.0
36.0
5.0
22.0
10.0
4-1.5
270
560
5
RC-2909-9.0
17.5
28.5
9.5
8.8
N/A
9.0
97
207
6
RC-1517-22.0
35.5
15.0
23.0
17.4
22.0
51
108
