Arrow Locking Circuit Board Support
 |
|
MATERIAL:NYLON 66
FLAME CLASS：UL 94V-2/ V0
COLOR：NATURAL
TEMPERATURE：-40°C to 85°C
Unit: mm
|
|
Part No.
|
A
|
|

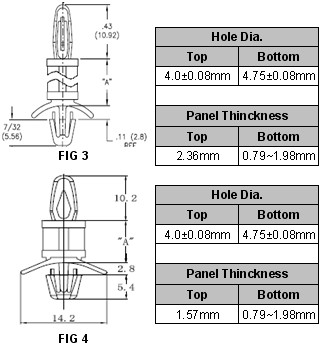

FIG 3
|
FIG 4
|
±0.4mm
|
|
ALCS-303
|
ALCS-403
|
4.8
|
|
ALCS-304
|
ALCS-404
|
6.4
|
|
ALCS-305
|
ALCS-405
|
7.9
|
|
ALCS-306
|
ALCS-406
|
9.5
|
|
ALCS-307
|
ALCS-407
|
11.1
|
|
ALCS-308
|
ALCS-408
|
12.7
|
|
ALCS-310
|
ALCS-410
|
15.9
|
|
ALCS-312
|
ALCS-412
|
19.1
|
|
ALCS-314
|
ALCS-414
|
22.2
|
|
ALCS-316
|
ALCS-416
|
25.4
|
|
ALCS-318
|
ALCS-418
|
28.6
|
|
ALCS-320
|
ALCS-420
|
31.7
|
|
ALCS-322
|
ALCS-422
|
34.9
|
|
|
