Solder Splice Connector



Working Temperature：-55℃ to 125℃
Began to Shrink Temperature：80℃
Soldering Temperature Begins To Dissolve：138℃
Soldering Temperature Completely Dissolved：160℃
Shrinkage Temperature＞160℃
Dielectric Strength：1KV
Protection Grade:IP67

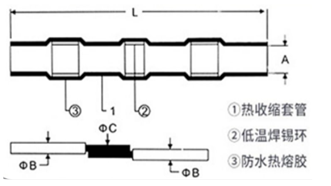

Part No.
COLOR
Wire Range
A
L
ΦB
ΦB&C
ΦC
AWG
mm2
XH-Y
YELLOW
12~10
4~6
6.0
40.0
3.7
6.0
3.4
XH-U
BLUE
16~14
1.5~2.5
4.5
40.0
2.3
4.5
2.0
XH-R
RED
22~18
0.5~1.5
2.7
40.0
1.4
2.7
1.2
XH-W
WHITE
26~24
0.25~0.34
1.7
26.0
1.0
1.7
0.76
