Snap-In Breathable Vent


Color: Black
Product features: waterproof, dustproof, hydrophobic,
breathable, heat dissipation
Breathability: 1500ml/min/@ 70mbar (customizable)
Static water pressure resistance: 100mbar for 30min
Protection level: IP67 (adjustable)
Temperature resistance: -40 ℃ to+125 ℃
Storage temperature: room temperature
Moisture permeability:>5000g/24H M2
Main body and cover material: PA66 nylon
Coating material: Expanded polytetrafluoroethylene
(EPTFE)/non-woven PET+Expanded polytetrafluoroethylene (EPTFE)
O-ring material: Silicon Rubber

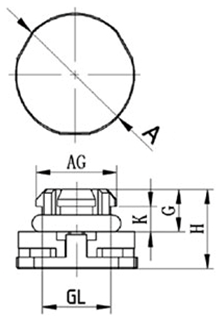

Unit:mm
Part No.
GL
AG
K
A
G
H
Air permeability
SBV-JX-7-4-BK
7.0
8.8
4.0
Φ14.0
5.5
9.5
≥1000ml/min/@70mbar
SBV-JX-5.5-4.5-BK
5.5
7.8
4.5
Φ17.5
7.3
12.2
≥1500ml/min/@70mbar
SBV-JX-10.4-3.6-BK
10.4
12.0
3.6
Φ17.5
6.0
11.1
≥1500ml/min/@70mbar
